Technical specifications: NV20U 20x zoom video conference camera:
| nModel No. | NV20U |
| Image Sensor | 1/3 inch EXMOR Sensor |
| Effective Pixel | 2.1 mega pixel |
| Horizontal Resolution | 1080P 30/25, 720P 60/50 |
| Focal Length | F=5.35mm--107.0mm F1.6(W)-2.7(T) |
| Signal Standard | NTSC/PAL |
| Horizontal View Angle | Near-end 55.5°--Far-end 3.0° |
| Zoom | 10x zoom |
| Gain Control | Auto/ manual |
| SNR Ratio | ≥50dB |
| Preset Position | IR Remote-controller supports 9 presets, PELCO Control Protocal supports 256 presets; |
| Pan/Tilt Movement Range | Pan:±175°(max speed 80°/s) Tilt:-35°~ +55°(max speed 80°/s) |
| Control Terminal | RS-232, RS-485 |
| Control Protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS-485) |
| Video Output | USB |
| Noise Reduction | 2D/3D |
| Work Temperature | -10°~50° |
| Work Humidity | -20°~60° |
| Baud Rate | 38400/9600bps |
| Adress Set | 1-64 |
| Weight | 1.5kg/2.85kg(before/ after packing) |
| Decoder | Built-in decoder |
| Installation | Support desktop, Tripod, Wall mount and ceiling mount |
| Video Compression Format | YUV,MJPEG,H.264 |
| Accessories | DC 12V power adaptor,IR remote control, manual, USB 2.0 cable, ceiling brackets and screws |
| Dimension | 182*182*182mm/262x232x220mm(before/after packing) |

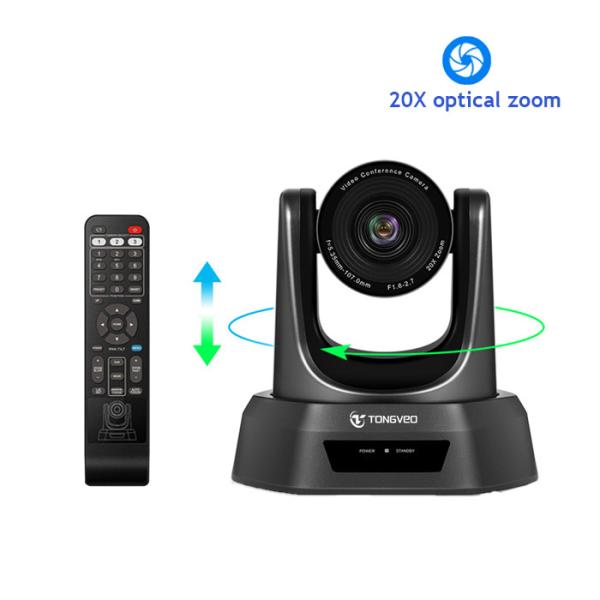

NV20U PTZ 20x zoom full HD 1080P USB video output video conference camera for church

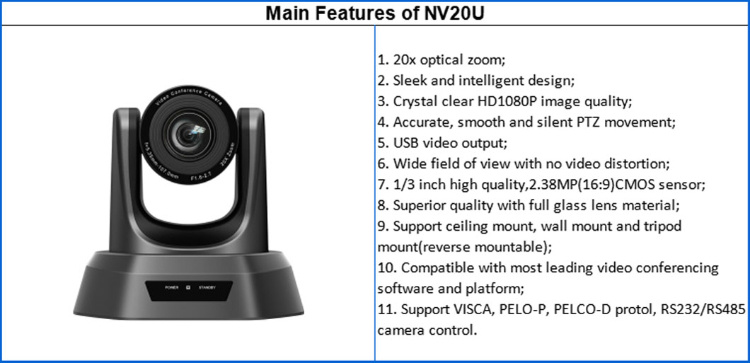

1. Main features of NV20U 20x zoom video conference camera:
20x optical zoom; sleek and intelligent design; Plug and play USB connectivity;
Crystal clear HD 1080p image quality; Accurate, smooth and silent PTZ movement;
Superior quality with full glass lens material; 55.5° wide field of view with no video distortion;
Crystal clear HD1080P image quality; Accurate, smooth and silent PTZ Movement;
compatible with all popular applications and cloud system;
plug and play USB connectivity; Crystal clear full HD 1080p image quality;
Wide field of view with no video distortion;
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
Preset function: select 1-9 to recall the saved position;
Installation:
The camera can set up on ceiling mount; hanging; wall mount; tripod mount and desktop;

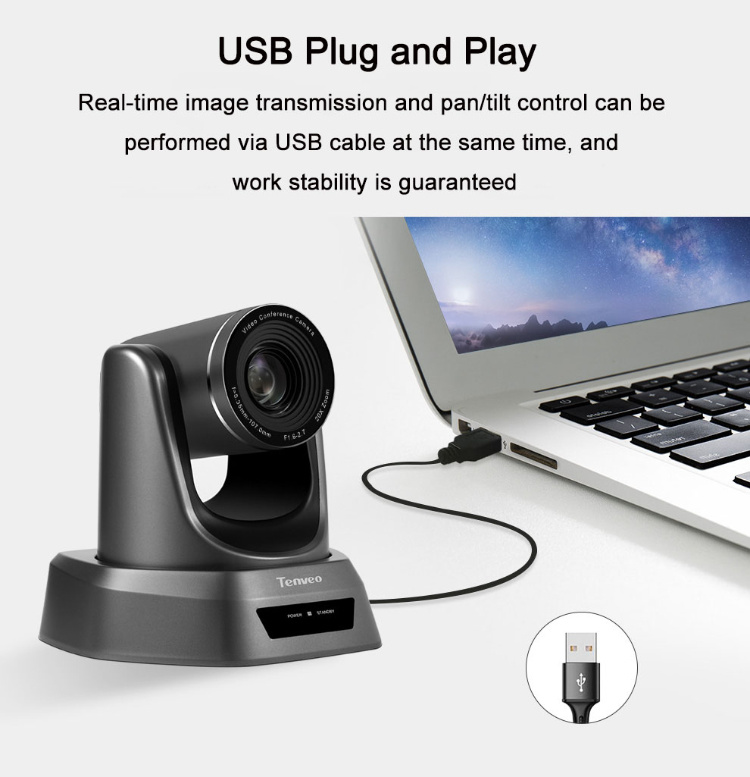

Simple operation: No need driver, fast connection;
Compatible with Zoom, Skype, MS team, Vmix, OBS, and other conferencing systems;

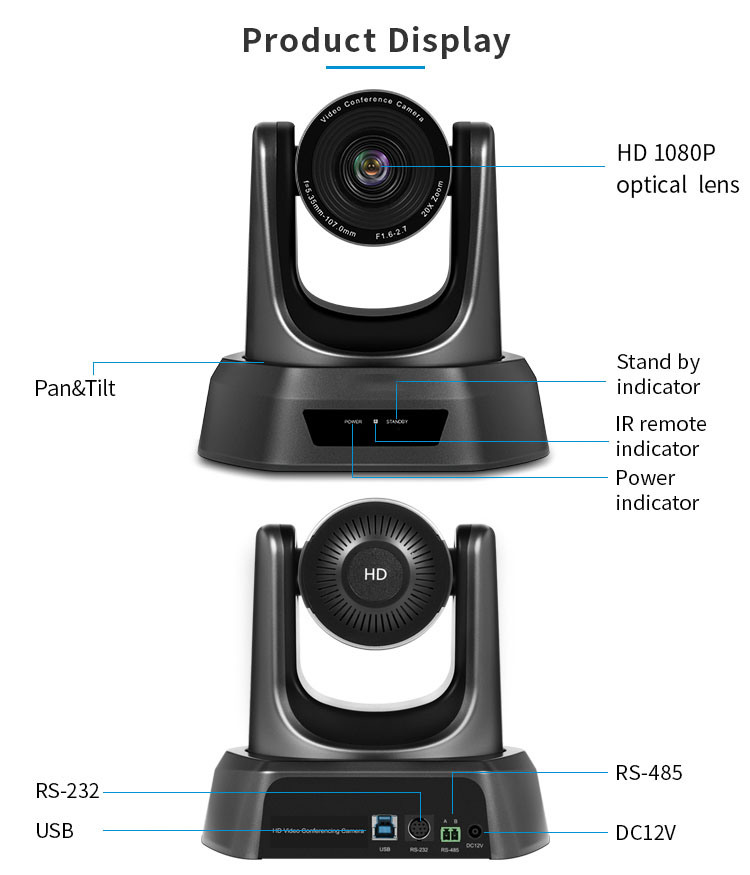

Compatible with Windows, MAC, and Android system; 2.Main details of NV20U 20x zoom video conference camera:
3.Main difference between NV20A and NV20U 10X zoom video conference camera:

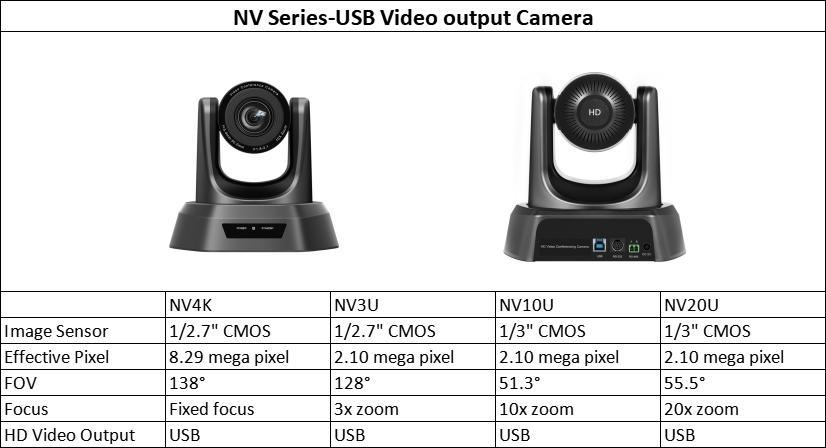

4.NV series USB video conference camera:

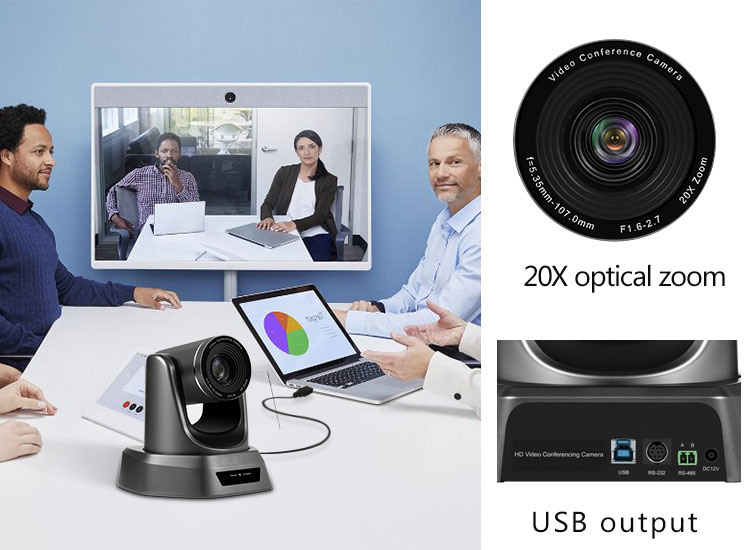

5.Main application of NV20U 20x zoom video conference camera:
1.Delivery:
For sample orders, we have products in stock; same-day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
1.Who we are?
Due to our extensive partner network, Tongveo can play a decisive role in international or global video conferencing projects. We focused on developing and implicating the technology of video conferencing products, SD, HD PTZ video conference camera and omnidirectional conference microphone speakers. We are professional and we have a good reputation in product development, production, sales and after service. We can design produce and sell directly in order to ensure the most competitive price and excellent quality under control. All of our products are compliant with CE, FCC and Rosh standards. We have established a sound sales & service network. Offices have been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc. We also successfully sold our products to many foreign countries. We are sincere to make any meeting better and easier! Welcome your OEM/ODM orders.
2. What we do?
We designing, tooling, produce and sell directly in order to ensure the most possible competitive price and excellent quality under Control. Our Product: Video conference camera, Video conference omnidirectional microphone, video Conference software product Video conference system, audio conference system, Network Conference system, Education system, Tele-medicine system, Courtrooms, Public safety system, Financial facility, Airports, Prisons, Highways, Port, Forest Fire Prevention, Schools and Customs systems.
Our advantages
1.Strictly QC process 1) Four times strict 100% inspection Raw Material Inpection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard)
2) 72 hours of the pre-delivery aging test. We own our independent aging test lab and all products undergo 72-hour aging tests before shipment.
2. Warranty We provide 24 months warranty guarantee, replacement within 3 months, and 24 months of free maintenance. Enjoy lifetime technical support service. (firmware upgrade service etc )
3. Qualified Certificates. Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO 9001 ).
4. Japanese Production Guide. Completely follow the strict Japanese production standards to guide production.
About certificate:
We have got CE, ROHS, FCC, and IS9001 certificates. We will make the production strictly according to the rules.
FAQ:
01. What kind of camera and microphone should l use?
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. Is it easy to operate?
Yes, Setting up a conference room with TONGVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can I bring more than one person into a call at the same time?
Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCAPELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
